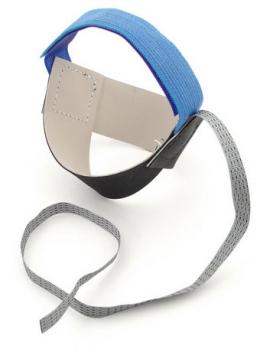

Ergo-One Heel Grounder
+40 (21) 4915667
- Comfortable stretch material for easy adjustment
- 1.5″ wide reversible cup design
- Two layer rubber material with non-marking inner cup
- 18″ long conductive tab
- Available in blue, black and day-glow yellow
- Built in 1 or 2 Meg Ohm resistor, no resistor also available
- Meets DOD 263A standards
Nr.Serii: B7500,B7501,B7502,B7510,B7511,B7512
Botron's highly durable Ergo Heel Grounder is offered in 1 meg, 2 meg and no resistor applications. With a larger cup design than our competitors, Botron's ESD heel grounder provides maximum coverage for a more reliable path to ground.
Features
Cup design:
The cup of the Ergo One Heel Grounder is a symmetrical design that can be reversed when put on. It also features a dual layer rubber with a non-marking inside and a conductive rubber outside. As with all of our static control heel grounders the Ergo One Series has a 1.5" wide rubber cup, securing both at the back and underneath the heel. It's 7.5" length rubber provides enough cup volume to fit comfortably on those with larger shoe sizes.
Fastening System:
This is a standard hook and loop system. Measuring .75 wide by 7" in length, it's ergonomic design is for both comfort and practicality.
Grounding:
Our ESD heel grounders come standard with a conductive 18" ribbon. All resistors are built in and are available in 1meg or 2meg applications, also available in no resistor.
Specifications
Material:
Hook and loop velcro
1.5″ x 7″ 2 layer rubber
Non-marking rubber interior
Conductive rubber outer layer
Built in resistor
18″ conductive nylon ribbon
Resistors:
1 MegOhm, 2 MegOhm, and No-Resistor models
Colors:
Blue, Black, Yellow
Part Numbers
B7500 Blue velcro 1 MegOhm ResistorB7501 Blue velcro No ResistorB7502 Blue velcro 2 MegOhm Resistor
B7510 Black velcro 1 MegOhm ResistorB7511 Black velcro No ResistorB7512 Black velcro 2 MegOhm Resistor
B7530 Yellow velcro 1 MegOhm ResistorB7531 Yellow velcro No ResistorB7532 Yellow velcro 2 MegOhm Resistor
